Spécifications

 Catégorie : Tours CNC - Swiss

Demande de soumission
  Référence # 2053

  Manufacturier TSUGAMI
  Modèle BH 20
  Année 2007
  Axes *
  Dia. Max. 0.787"
  Longueur de Tournage 6.69"
  Dia. Tube 0.787"
  HP 4.9
  RPM 12000
  Contrôle FANUC 31i-A
  Prix VENDU!



Autres spécifications

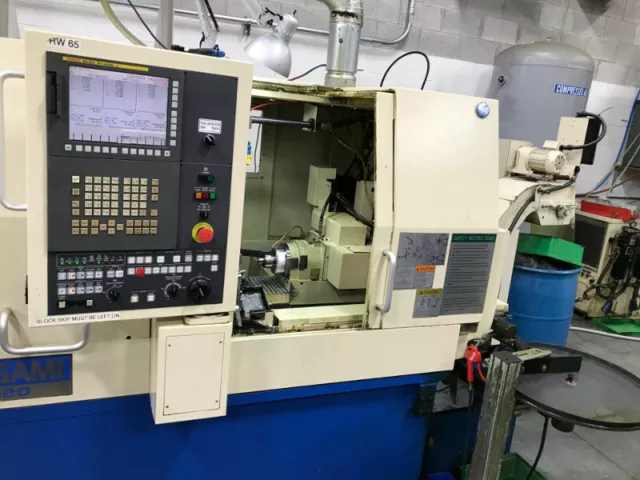

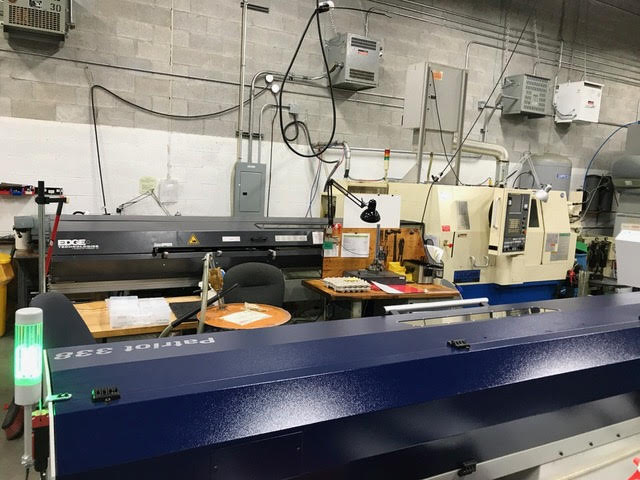

                  Used Tsugami BH20 for sale. CNC Swiss-Type Lathe

                  Year of Mfg. 2007

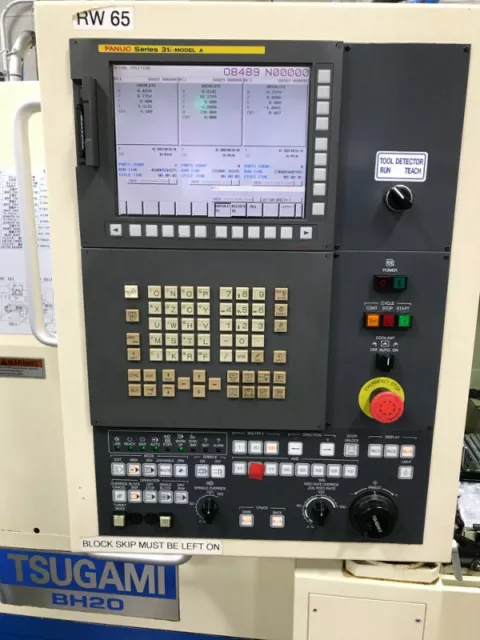

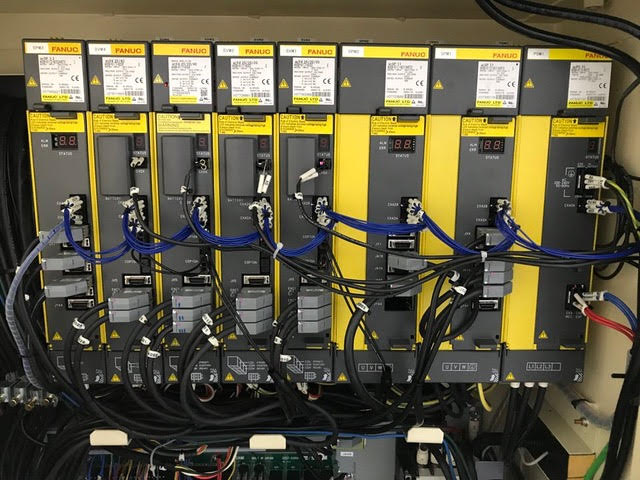

                  Fanuc Series 31i-Model A

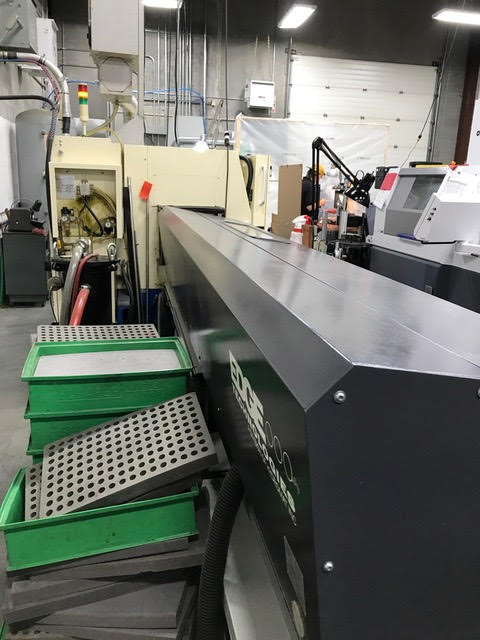

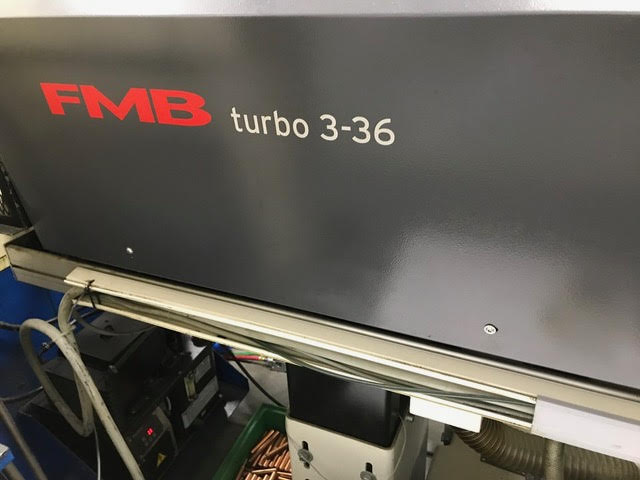

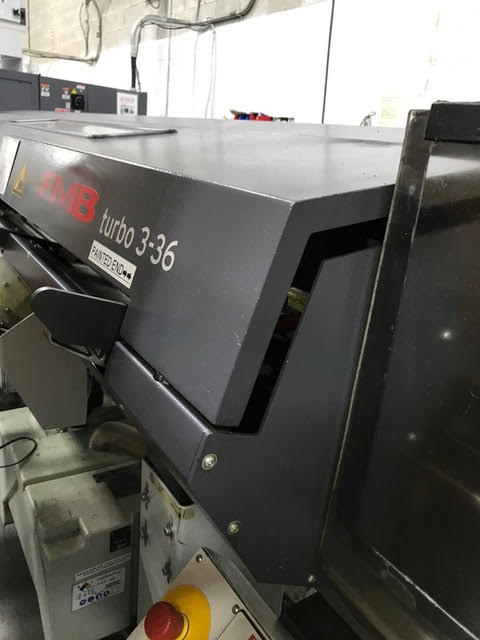

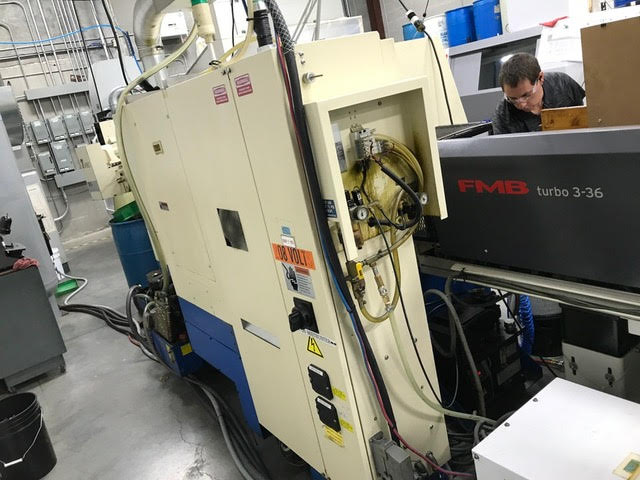

                  FMB Turbo 3-36 Barfeed

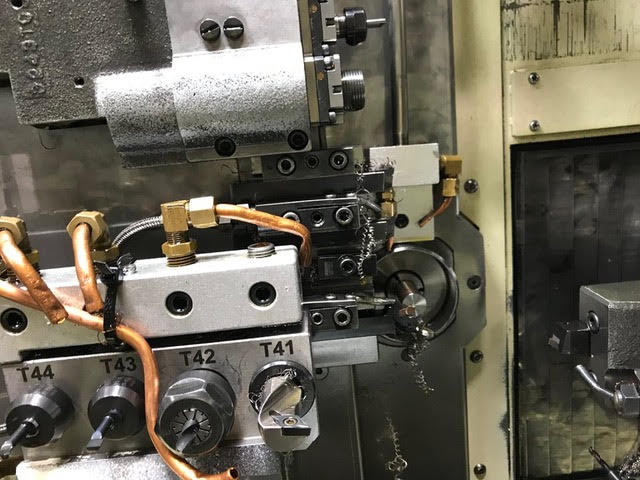

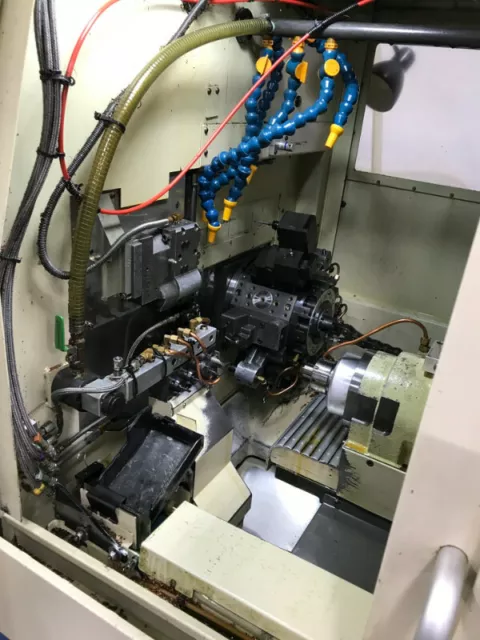

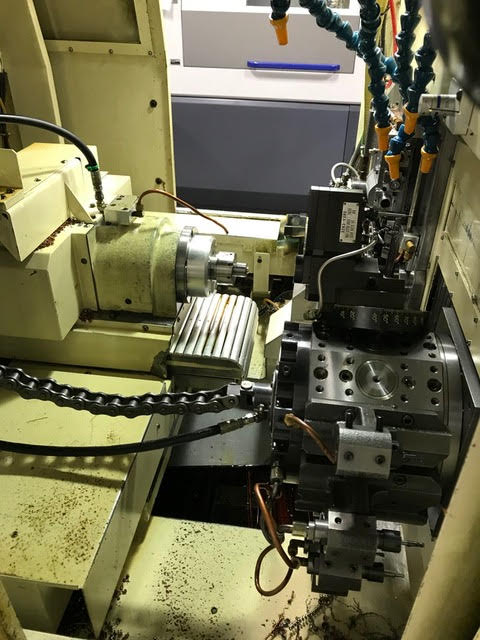

                  Y-Axis on Both Turret and Gang Tooling



                  Specifications:

                  Turning Diameter Max................0.787 “

                  Turning Length (in.) Max.............6.690 “

                  Bar Capacity (in.) Std...................0.787 “

                  Collet Type/Capacity.................0.787 “

                  Main Spindle Speed rpm...........12000 RPM

                  Main Spindle Motor......................4.9 HP

                  Sub-Spindle Speed / Motor.....12,000 RPM / 4,9 HP



                  Equipped With:

                  Fanuc Series 31i-Model A FMB

                  Turbo 3-36 Barfeed Y

                  -Axis on Both Turret and Gang Tooling

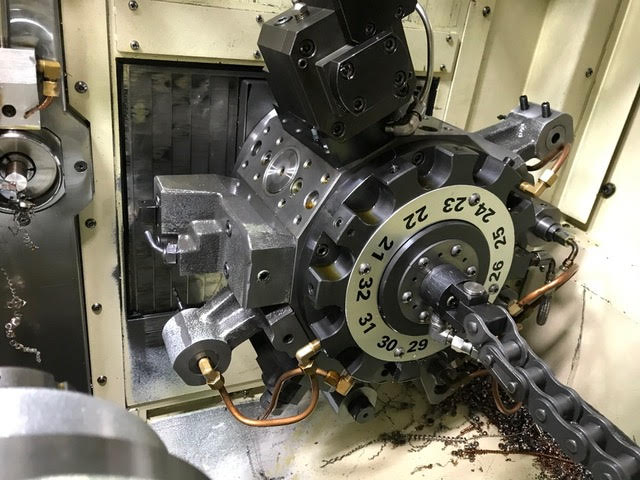

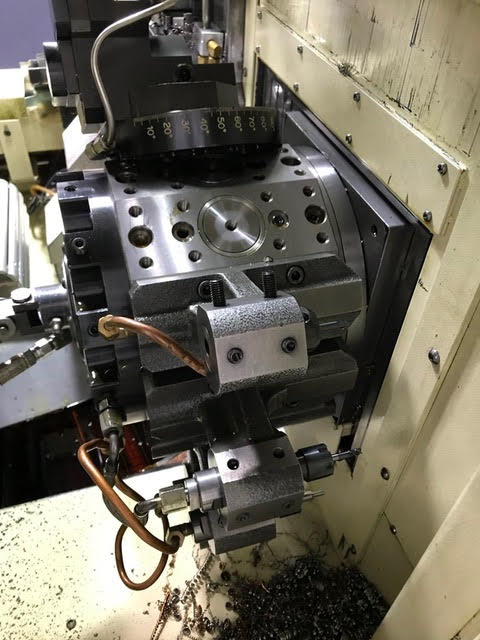

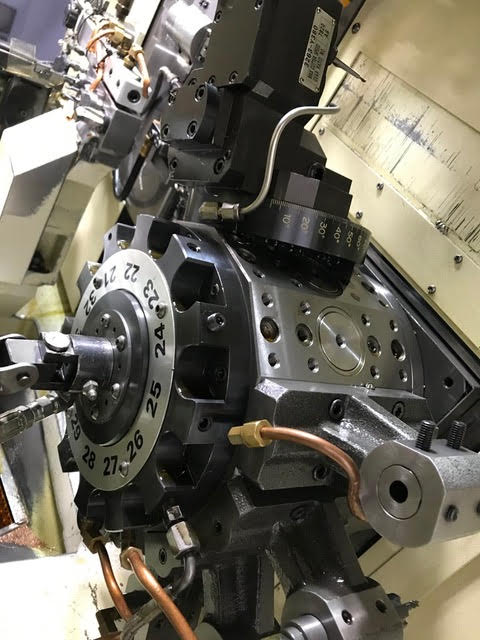

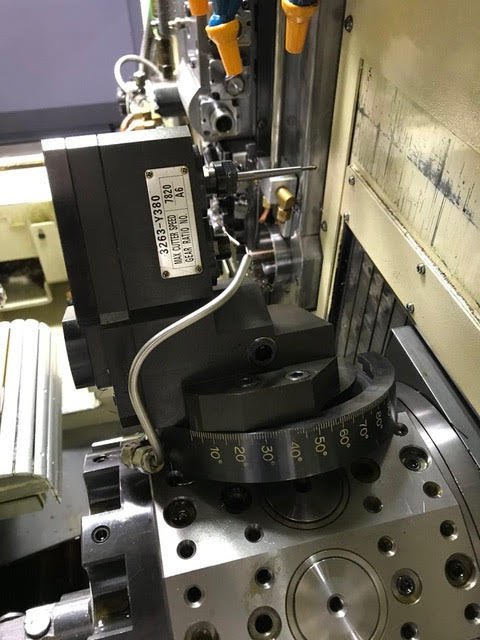

                  Has a Thing on the Turret for Different Angles

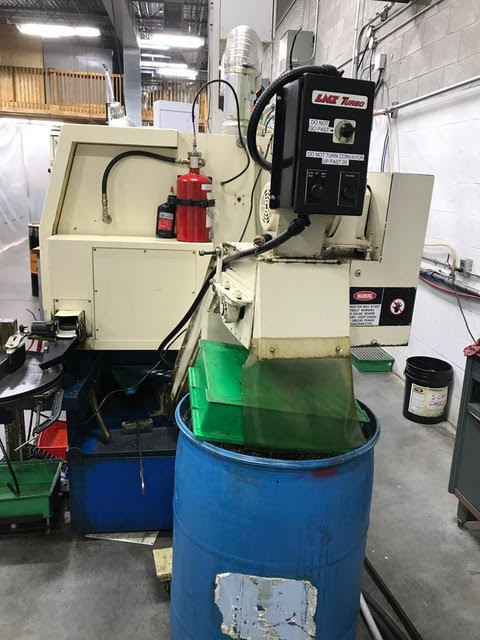

                  Chip conveyor

Photos de la machine
